Fire Alarm Panels
Conventional or Addressable Panels
It is designed for indoor installation.
Features
-
EN 54-2 and EN 54-4 certified;
-
Conventional fire panel;
-
Compatible with all manufactured conventional detectors;
-
Fire lines 2, 4, 6, 8 or 16 Zone
-
Outputs – 4 relay-type embedded;
-
Additional outputs / optional / – 2/4/6/8 number relay type, with the addition of a module M9000R – 2/4/6/8;
-
Control lines and monitoring outputs for fault conditions (short circuit and interruption) and automatic reset;
-
Light indication for Fire condition, Fault, Disable and Test;
-
Ability to delay controllable outputs and general fire for a period of 0 to 7 min. after the state registration of fire;
-
Built-in sounder for fire – one tonal, continuous with the possibility of exclusion;
-
Status Test each fire alarm lines;
-
Ability to disable any of fire alarm lines;
-
Ability to disable controllable outputs;

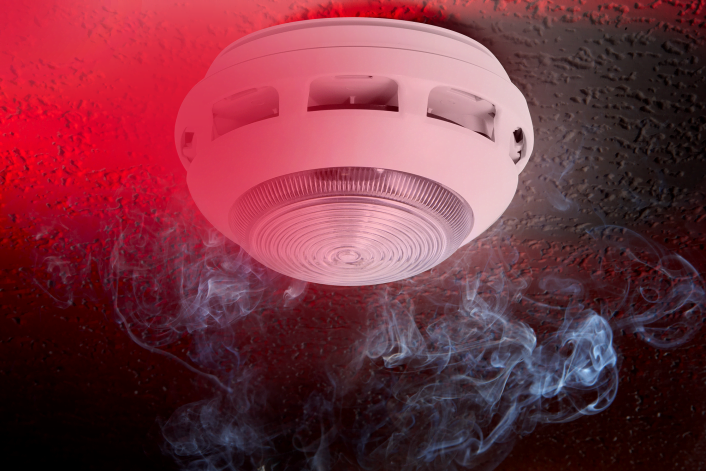

Optical Smoke Detectors
Used for smoke detection
It is designed for indoor installation.
Features
-
Conventional Optical smoke detector;
-
Certified: EN 54-7 ;
-
Supply voltage: (9-30) V / DC
-
Power consumption in Duty condition: ≤ 130 µА
-
Consumption in “Fire” condition: 20 mА/ 24V DC
-
Operating temperature range: minus 10°С ÷ plus 50°С;
-
Protected area: Circle with diameter 15m, h 11m.
Heat Detectors
Used for rise in Heat Temperature
It is designed for indoor installation.
Features
-
Conventional fire heat detector;
-
Certified EN 54-5;
-
Rate of rise heat detector / Static response temperature 65°С ;
-
Fixed temperature heat detector / Static response temperature 65°С;
-
Supply voltage: (9-30) V / DC;
-
Power consumption in Duty condition: ≤ 130 µА;
-
Operating temperature range: minus 10°С ÷ plus 50°С;
-
Protected area: Circle with diameter 10m, h 8m.
Smoke and Heat Detectors
Used to detect smoke or heat
It is designed for indoor installation.
Features
-
Combines Optical smoke and Heat detector;
-
Certified EN 54-5 and EN 54-7;
-
Class Heat – Rate of rise heat detector/ Static response temperature 65°С;
-
Supply voltage: (9-30) V / DC;
-
Power consumption in Duty condition: ≤ 130 µА;
-
Operating temperature range: minus 10°С ÷ plus 50°С;
-
Protected area: Circle with diameter 10m, h 8m.
Manual Call Point
Used to trigger the Fire Alarm manually
It is designed for indoor installation.
Features
-
Manual Call Point Detector;
-
Certified EN 54-11 and EN 54-17;
-
Power consumption in Duty condition: ≤ 350 µА;
-
Consumption in “Fire” condition: 3 mА.
-
Certificate
External & Internal Fire Siren
It is designed for indoor and outdoor installation.
Features
-
Wired siren for interior and exterior fire
-
Loudness 102dB at 1m
-
32 alarm tones
-
High base for easy installation
-
Power supply 24 VDC
